Edison-316 Decorative Stainless Steel Crimped Wire Mesh

Edison-316 decorative stainless steel crimped wire mesh is an intermediate double crimped type metal product made of flat wire, the metal mesh has rectangular openings and the vertical wire is wider than the horizontal wire. The stainless steel material makes this decorative mesh suitable for indoor and outdoor architectures. It has excellent corrosion resistance in a wide range of environments, and the surface remains bright for a long time, requiring little special maintenance.

Larger openings make this crimped wire mesh lighter in weight, suitable for infill panels of stair railings indoors and outdoors as well as decorative meshes for cabinets, doors and windows, etc.

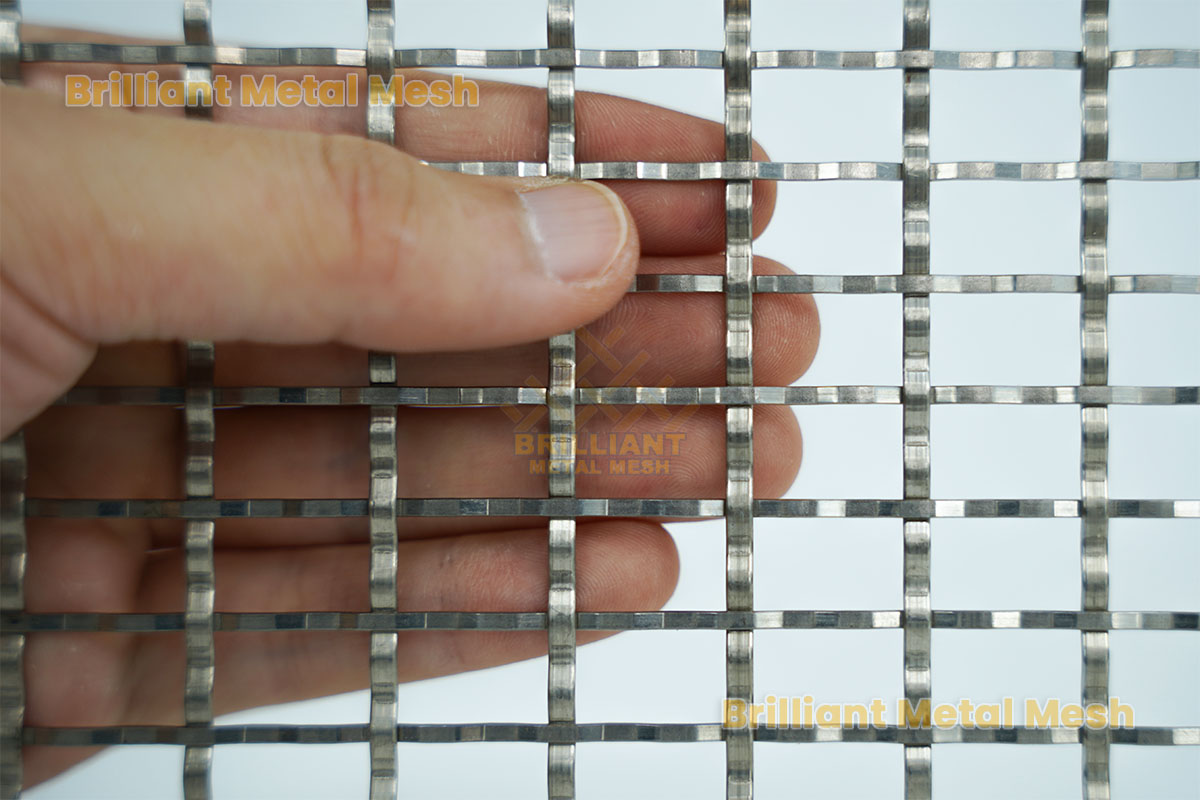

Edison-316 Edison-316 Edison-316 stainless steel crimped wire mesh decorative lock crimp wire mesh

Technical Specifications

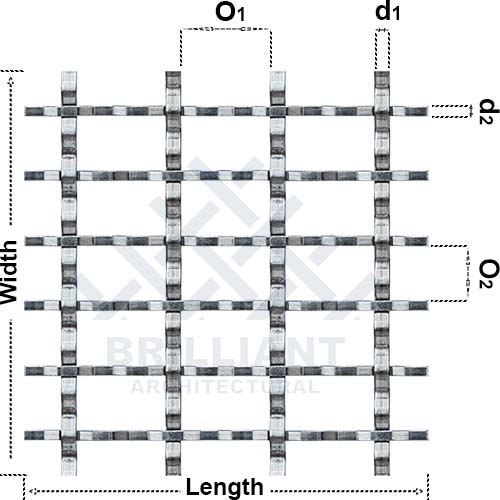

Specifications of Edison-316 Stainless Steel Decorative Crimped Wire Mesh Panel

Product Name Edison-316
Material SS 304/316
Wire Size (d1), mm (in) 3 (.118)
Opening (O1), mm (in) 16 (.63)
Opening (O2), mm (in) 10 (.394)
Overall thickness, mm (in) 2 (.079)
Open Area 70 %
Max Width 1.2m (4 ft)
Max Length 2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2) 2.68 (0.55)

Product Photos

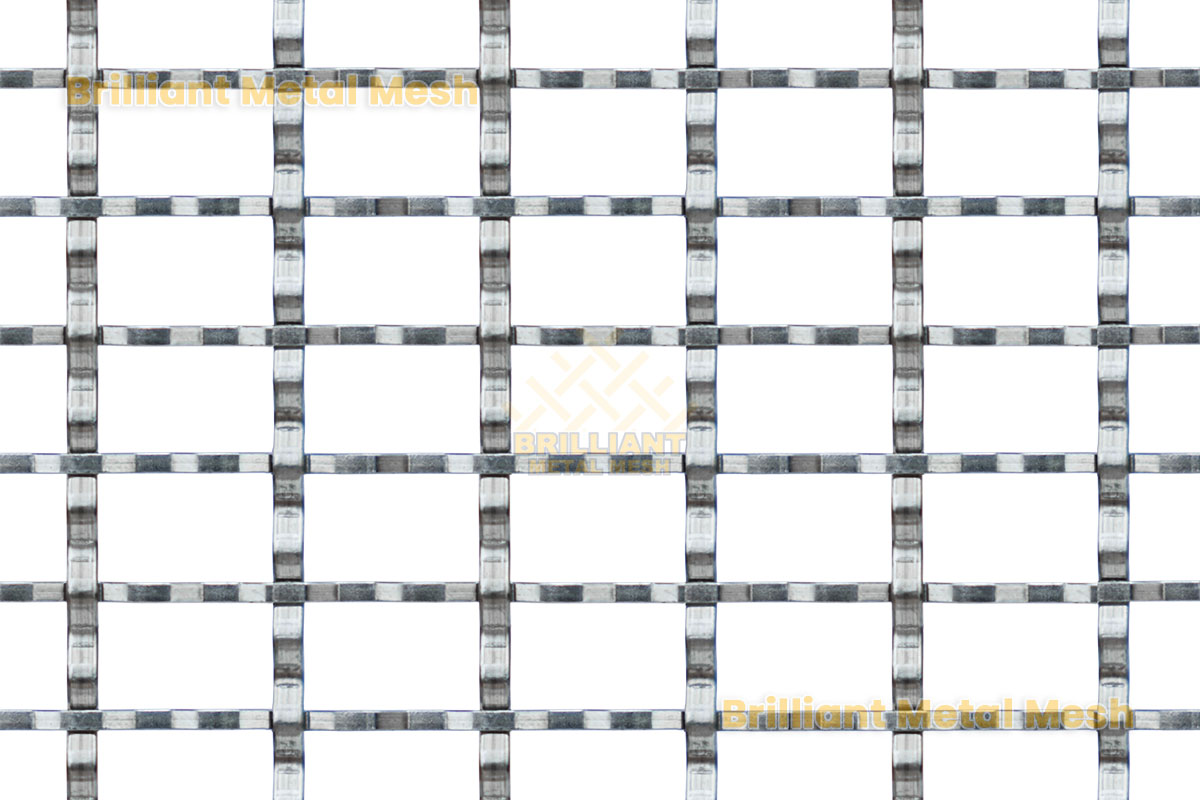

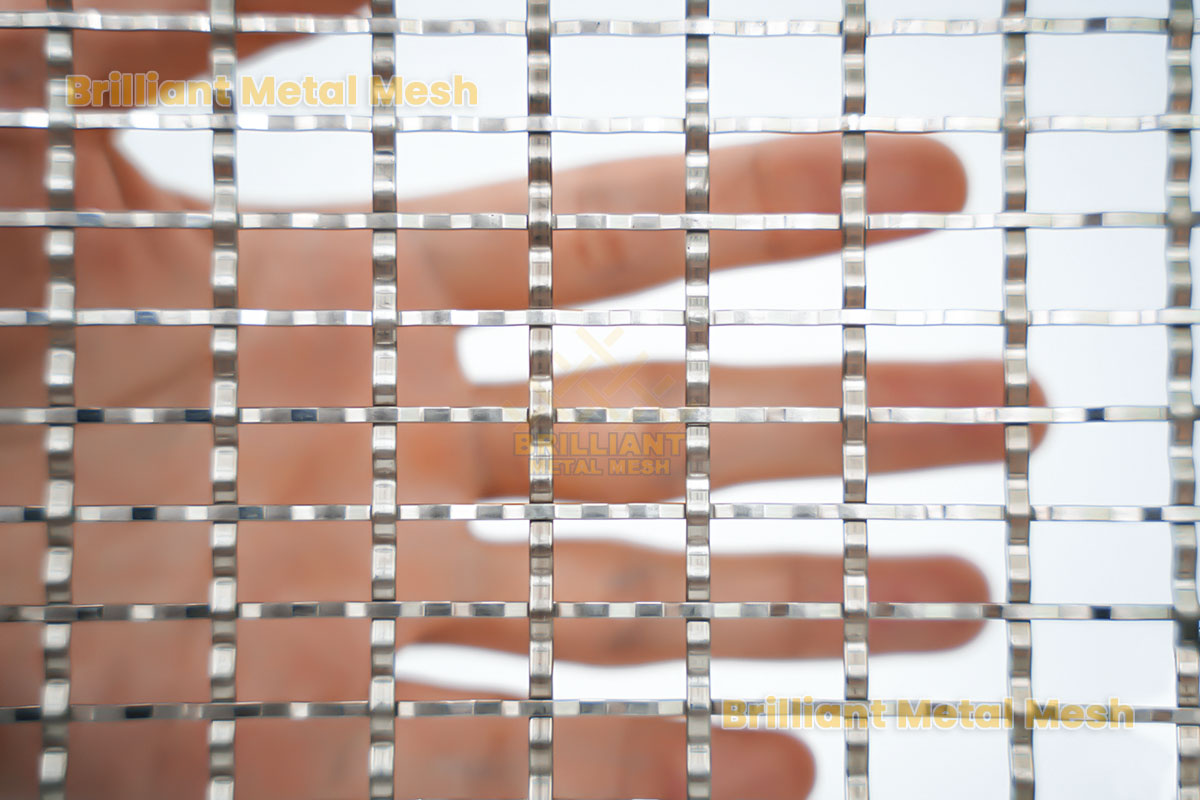

stainless steel crimped mesh

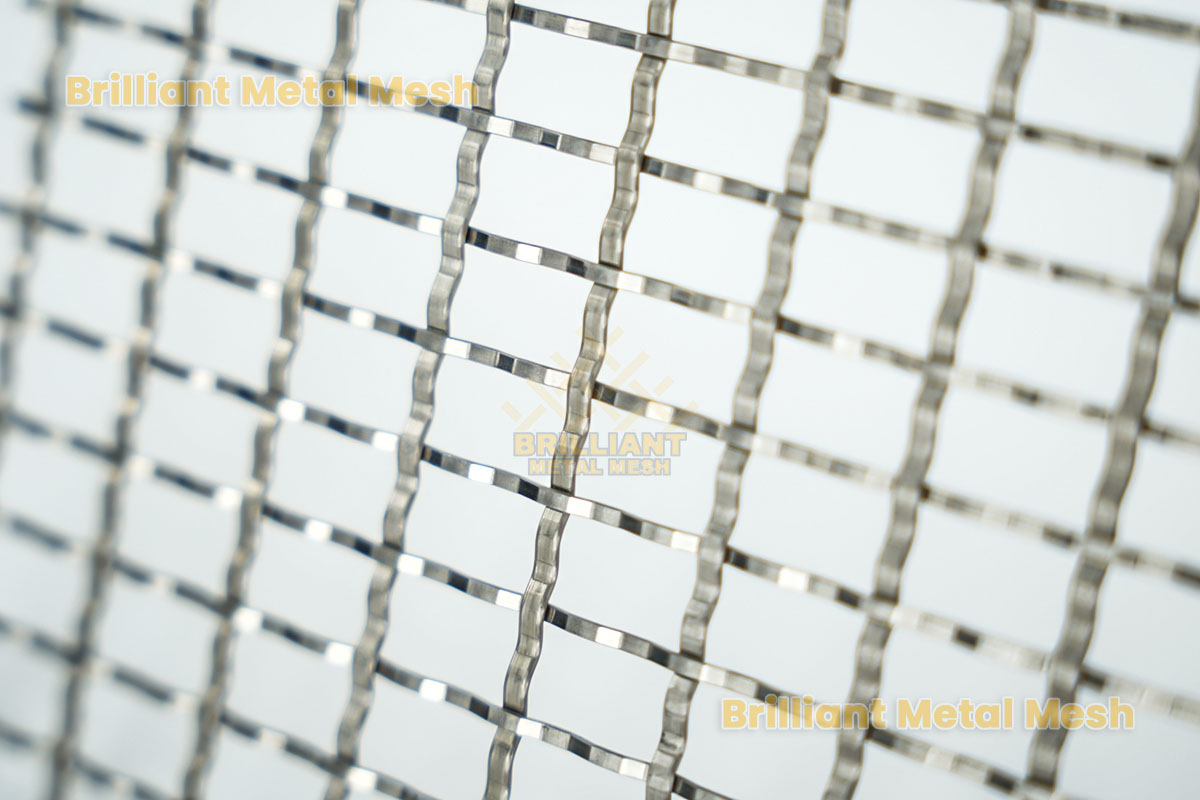

crimped woven wire mesh

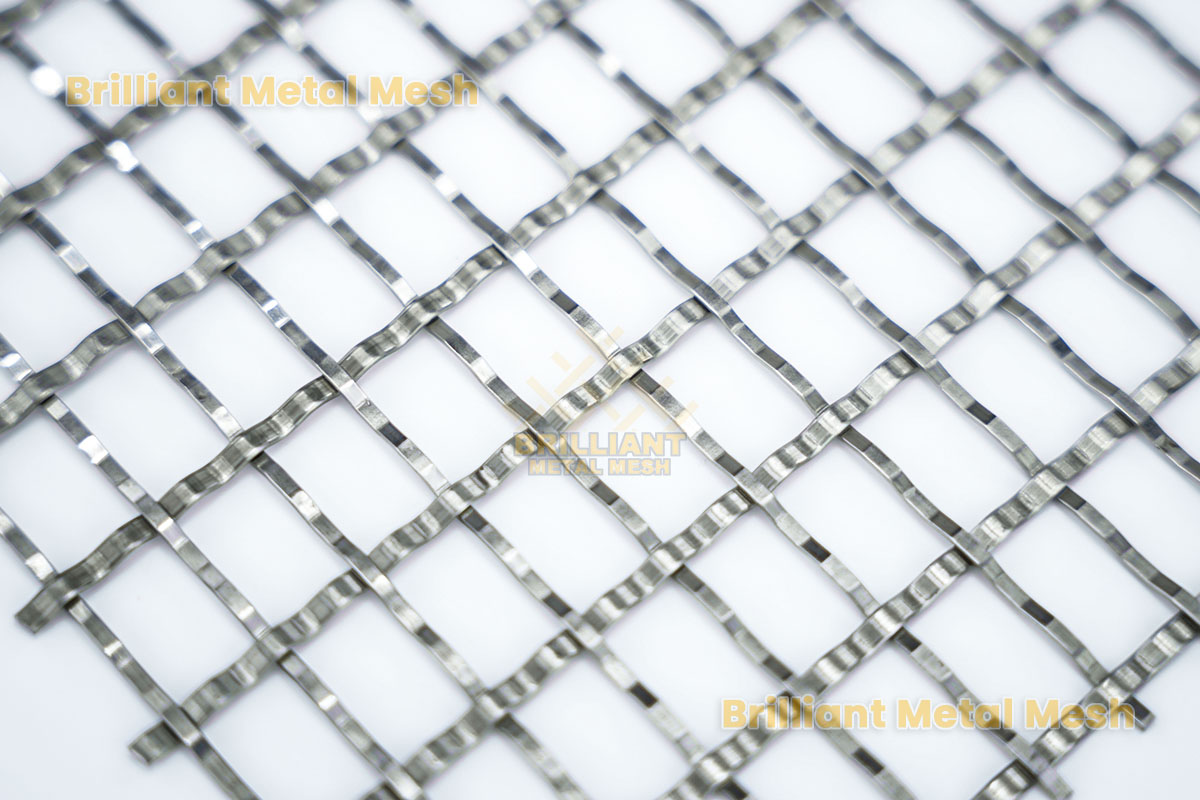

Architectural stainless crimped wire mesh
Architectural stainless steel crimped mesh

Color & Finish
