Einstein-307AC Decorative Antique Copper Wire Mesh Screen

Einstein-307AC Decorative Antique Copper Wire Mesh Screen is woven from crimped stainless steel flat wire, which is copper-plated for an antique secondary finish, and then manually abrade to remove the dark oxide layer on the outermost surface, forming a unique pattern of light and dark. The copper metal mesh has square openings, the opening area can be vary from 30% to 60%, and the antique copper color adds a classical atmosphere.

This decorative antique copper mesh sheet is suitable for various applications in architectural interiors, especially for cabinets or cabinet doors, room dividers, space separators, privacy screens, air vent covers, etc.

Basic Info

Open Area: 30%-60%
Material: Flat stainless steel wire
Finish: Antique copper plated

Einstein-307AC

Technical Specifications

Specifications of Einstein Series Decorative Antique Copper Mesh Screen

Product Name	Einstein-307AC	Einstein-310AC	Einstein-405AC	Einstein-304AC	Einstein-305AC	Einstein-2503AC
Material	SS 304/316	SS 304/316	SS 304/316	SS 304/316	SS 304/316	SS 304/316

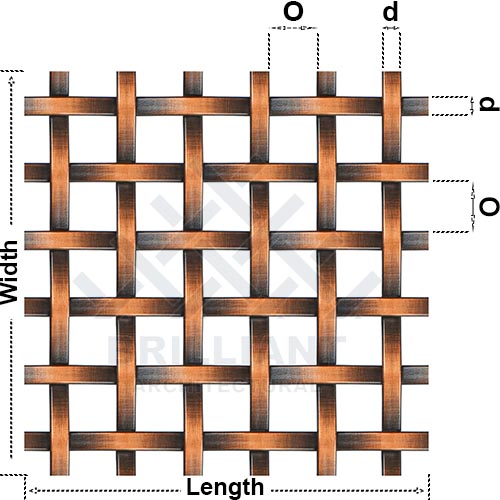

Wire Size (d), mm (in)	3 (.118)	3 (.118)	4 (.157)	3 (.118)	3 (.118)	2.5 (.098)
Opening (O), mm (in)	7 (.276)	10 (.394)	5 (.197)	4 (.157)	5 (.197)	3 (0.118)
Overall thickness, mm (in)	2.5 (.098)	3 (.118)	2 (.079)	2.5 (.098)	2 (.079)	2 (.079)
Open Area	50%	60%	33%	31%	40%	30%
Max Width	1.2m (4 ft)	1.2m (4 ft)	1.2m (4 ft)	1.2m (4 ft)	1.2m (4 ft)	1.2m (4 ft)
Max Length	2.8m (9 ft)	2.8m (9 ft)	2.8m (9 ft)	2.8m (9 ft)	2.8m (9 ft)	2.8m (9 ft)
Approx. Weight, kg/m2 (lb/ft2)	5.8 (1.19)	5.6 (1.15)	7.1 (1.45)	8.3 (1.70)	6.3 (1.29)	7.4 (1.52)

Product Photos

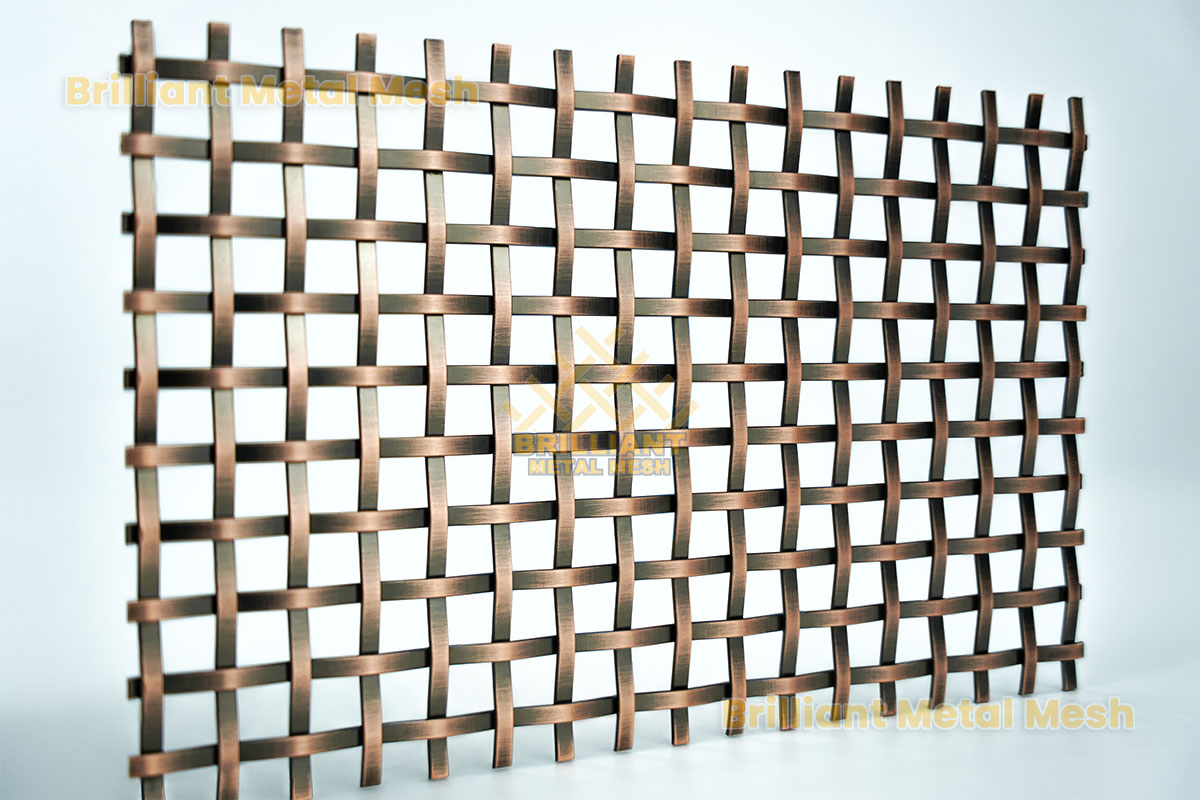

architectural decorative copper metal mesh

Einstein-307AC Decorative Antique Copper Wire Mesh Screen
